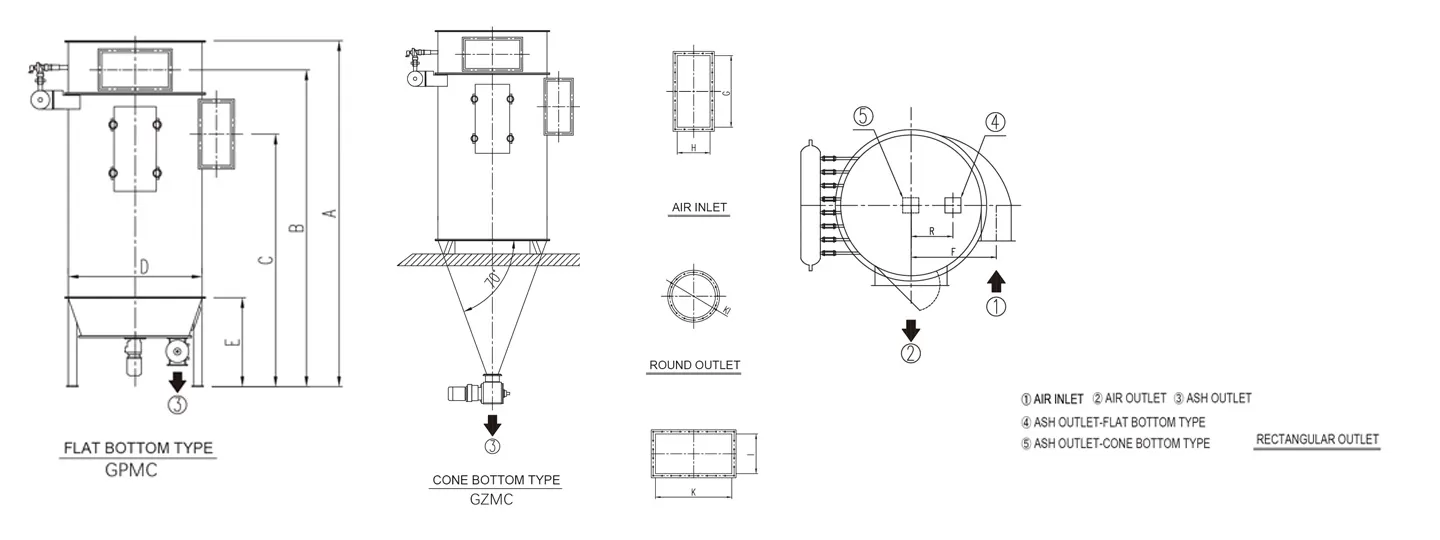

| Model | Sleeve length (mm) | Filter area (㎡) | Air vol. (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | R (mm) | F (mm) | H×G (mm) | KI (mm) | Air lock (kw) | Dust scraper (kw) | High pressure blower (kw) | Weight (kg) |
| GPMC-26 | 1800 | 17.6 | 3168-4224 | 3461 | 3156 | 2503 | 1140 | 1050 | 425 | 708 | 275×500 | Φ450 | 0.55 | 1.1 | 1.5 | 1128 |
| 2000 | 19.6 | 3528-4704 | 3661 | 3356 | 2703 | 1184 | ||||||||||
| 2400 | 23.5 | 4230-5640 | 4061 | 3756 | 3103 | 1254 | ||||||||||
| GPMC-39 | 1800 | 25.7 | 4626-6168 | 3461 | 3181 | 2433 | 1370 | 1050 | 430 | 830 | 290×640 | Φ500 | 0.75 | 1.5 | 1634 | |
| 2000 | 28.7 | 5166-6888 | 3661 | 3381 | 2633 | 1715 | ||||||||||
| 2400 | 34.6 | 6228-8304 | 4061 | 3781 | 3033 | 1782 | ||||||||||
| GPMC-52 | 1800 | 35.3 | 6354-8472 | 3461 | 3136 | 2383 | 1580 | 1050 | 470 | 960 | 340×740 | 790×410 | 1.1 | 1969 | ||
| 2000 | 39.1 | 7038-9384 | 3661 | 3336 | 2583 | 2068 | ||||||||||
| 2400 | 47 | 8460-11280 | 4061 | 3736 | 2983 | 2173 | ||||||||||
| GPMC-78 | 1800 | 52.9 | 9522-12696 | 3461 | 3161 | 2361 | 1840 | 1050 | 620 | 1163 | 485×785 | 845×460 | 1.1 | 1.5 | 2.2 | 2745 |
| 2000 | 58.7 | 10566-14088 | 3661 | 3361 | 2561 | 2882 | ||||||||||
| 2400 | 69.1 | 12438-16584 | 4061 | 3761 | 2961 | 3014 | ||||||||||
| GPMC-104 | 1800 | 68.6 | 12348-16464 | 3461 | 3161 | 2336 | 2020 | 1050 | 640 | 1270 | 520×835 | 1090×460 | 1.5 | 3500 | ||
| 2000 | 76.5 | 13770-18360 | 3661 | 3361 | 2536 | 3678 | ||||||||||
| 2400 | 92.1 | 16578-22104 | 4061 | 3761 | 2936 | 3872 | ||||||||||
| GPMC-130 | 1800 | 88.2 | 15876-21168 | 3461 | 3166 | 2303 | 2350 | 1050 | 830 | 1447 | 530×900 | 1200×470 | 1.5 | 1.5 | 3 | 3105 |
| 2000 | 98 | 17640-23520 | 3661 | 3366 | 2503 | 3159 | ||||||||||
| 2400 | 115.2 | 20736-27648 | 4061 | 3766 | 2903 | 3269 |
