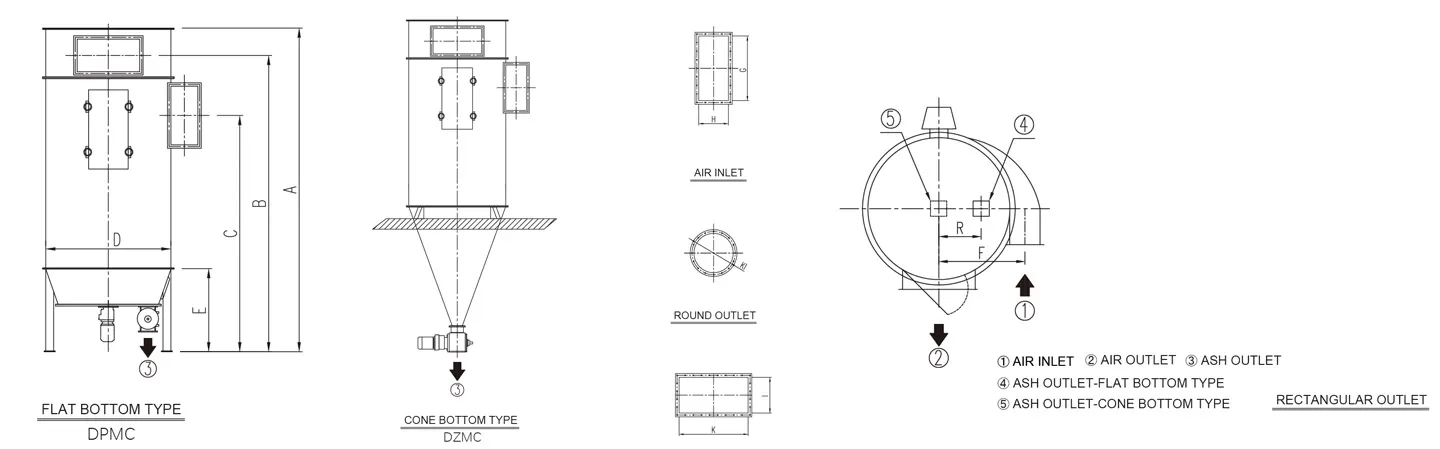

| Model | Sleeve length (mm) | Filter area (㎡) | Air vol. (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | R (mm) | F (mm) | H×G (mm) | KI (mm) | Air lock (kw) | Dust scraper (kw) | Low pressure blower (kw) | Weight (kg) |
| DPMC-26 | 1800 | 17.2 | 1032-5160 | 3518 | 3156 | 2503 | 1140 | 1050 | 425 | 708 | 275×500 | Φ450 | 0.55 | 1.1 | 1.5 | 1128 |
| 2000 | 19.1 | 1146-5730 | 3718 | 3356 | 2703 | 1184 | ||||||||||
| 2400 | 23 | 1380-6900 | 4118 | 3756 | 3103 | 1254 | ||||||||||
| DPMC-39 | 1800 | 25.7 | 1542-7710 | 3518 | 3181 | 2433 | 1370 | 1050 | 430 | 830 | 290×640 | Φ500 | 0.75 | 1.5 | 1634 | |
| 2000 | 28.7 | 1722-8610 | 3718 | 3381 | 2633 | 1715 | ||||||||||
| 2400 | 34.6 | 2076-10380 | 4118 | 3781 | 3033 | 1782 | ||||||||||
| DPMC-52 | 1800 | 35.2 | 2112-10560 | 3518 | 3136 | 2383 | 1580 | 1050 | 470 | 960 | 340×740 | 790×410 | 1.1 | 1969 | ||
| 2000 | 38.2 | 2292-11460 | 3718 | 3336 | 2583 | 2068 | ||||||||||
| 2400 | 46.2 | 2766-13830 | 4118 | 3736 | 2983 | 2173 | ||||||||||
| DPMC-78 | 1800 | 51.5 | 3090-15450 | 3518 | 3161 | 2361 | 1840 | 1050 | 620 | 1163 | 485×785 | 845×460 | 1.1 | 1.5 | 2.2 | 2745 |
| 2000 | 57.3 | 3438-17190 | 3718 | 3361 | 2561 | 2882 | ||||||||||
| 2400 | 69.1 | 4146-20730 | 4118 | 3761 | 2961 | 3014 | ||||||||||
| DPMC-104 | 1800 | 68.6 | 4116-20580 | 3518 | 3161 | 2336 | 2020 | 1050 | 640 | 1270 | 520×835 | 1090×460 | 1.5 | 3500 | ||
| 2000 | 76.5 | 4590-22950 | 3718 | 3361 | 2536 | 3678 | ||||||||||
| 2400 | 92.1 | 5526-27630 | 4118 | 3761 | 2936 | 3872 | ||||||||||
| DPMC-130 | 1800 | 88.2 | 5292-26460 | 3518 | 3166 | 2303 | 2350 | 1050 | 830 | 1447 | 530×900 | 1200×470 | 1.5 | 1.5 | 3 | 3105 |
| 2000 | 98 | 5880-29400 | 3718 | 3366 | 2503 | 3159 | ||||||||||
| 2400 | 115.2 | 6912-34560 | 4118 | 3766 | 2903 | 3269 |
